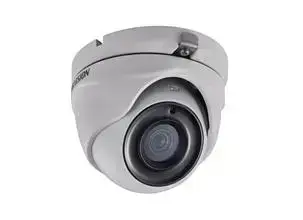

Hikvision 3 Mega Pixel HD-TVI EXIR Turrent Dome, 20M IR, Metal, 2.8mm

SKU: DS-2CE56F1T-ITM-B28 Category: IP Cameras

Camera
Image Sensor:		3MP CMOS Image Sensor
Signal System:		PAL/NTSC
Effective Pixels:		2052(H)*1536(V)
Min. Illumination:		0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
Shutter Time:		1/25(1/30) s to 1/50,000 s
Lens:		2.8mm/3.6mm/6mm optional Angle of View: 84°(2.8mm), 67.8°(3.6mm), 44.6°(6mm)
Lens Mount:		M12
Adjustment Range:		Pan: 0 – 360°, Tilt: 0 – 75°, Rotation: 0 – 360°
Day& Night:		IR cut filter with auto switch
Video Frame Rate:		1920 ×1536@18fps
HD Video Output:		1 Analog HD output
Synchronization:		Internal Synchronization
S/N Ratio:		More than 62 dB
Up the Coax:		Support

Menu
Auto White Balance:		Auto/MWB
BLC:		Support
AGC:		Support
Language:		English/Chinese
Function:		Digital Noise reduction; Mirror; SMART IR

General
Operating Conditions:		-40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing)
Power Supply:		12 VDC±15%
Power Consumption:		Max. 5W
Weather Proof:		IP66
IR Range:		Up to 20m
Communication :		Up the coax Protocol: HIKVISION-C(Coaxitron)
Dimension:		91mm×82.6mm×68.3mm (3.58″×3.25″×2.69″)

/p>

Hikvision 3 Mega Pixel HD-TVI EXIR Turrent Dome, 20M IR, Metal, 2.8mm
