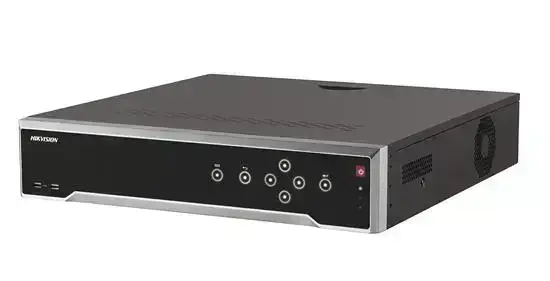

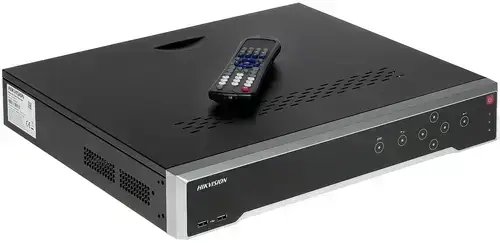

Hikvision 32 Channel NVR with 4 HDD Bay

Hikvision 32 Channel NVR with 4 HDD Bay - Image 2

Hikvision 32 Channel NVR with 4 HDD Bay - Image 3

Hikvision 32 Channel NVR with 4 HDD Bay - Image 4

Hikvision 32 Channel NVR with 4 HDD Bay

SKU: DS-7732NI-K4 Category: IP Cameras

Description

Video/Audio Input
Two-way audio input:		1-ch, RCA (2.0 Vp-p, 1kΩ)
IP video input:		32-ch

Network
Remote connection:		128
Incoming bandwidth:		256Mbps
Outgoing bandwidth:		160Mbps

Video/Audio Output
HDMI Output:		1-ch, resolution: 4K(38402160)/60Hz, 4K(38402160)/30Hz, 19201080P/60Hz, 16001200/60Hz, 12801024/60Hz, 1280720/60Hz, 1024*768/60Hz
Recording Resolution:		8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output:		1-ch, RCA (Linear, 1kΩ)
Synchronous Playback:		16-ch
VGA Output:		1-ch, resolution: 19201080P/60Hz, 12801024/60Hz, 1280720/60Hz, 1024768/60Hz

Decoding
Capability:		8-ch@1080P
Live view / Playback:		8MP/6MP/5MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Hard Disk
SATA:		4 SATA interfaces for 4HDDs
Capacity:		Up to 6TB capacity for each HDD

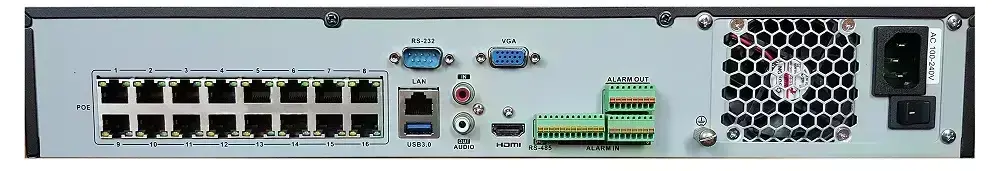

External Interface
Network Interface:		2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces
Serial Interface:		RS-232; RS-485;
USB Interface:		Front panel: 2 × USB 2.0 Rear panel: 1 × USB 3.0
Alarm In:		16-ch
Alarm Out:		4-ch

General
Power Supply:		100 to 240 VAC
Consumption(without hard disk and POE):		≤20 W
Working Temperature:		-10 oC ~ +55 oC (+14 oF~ + 131 oF)
Working Humidity:		10 % ~ 90 %
Chassis:		19-inch rack-mounted 1.5U chassis
Dimensions:		445 × 390 × 70 mm (17.5″× 15.3″ × 2.8″)
